8"-14'' GM-91K high pressure hydraulic hose crimping machine

FOB Reference Price:Get Latest Price
$1,000.00 - $3,000.00 / Sets | 1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Place of Origin:
Hebei, China
Brand Name:
Gemflex
Voltage:
220V/380V
Power(W):
5.5KW
Dimension(L*W*H):
630*800*1376(mm)
Weight:
100KG - 500KG
Certification:
CE ISO9001
Warranty:
3 Years
After-sales Service Provided:
Free spare parts
Model Number:
91K
motor:
380V/ 5.5KW
Pump displacement:
14.5L/min
available motor:
220V/2.2KW
Systematic pressure:
25MPa
Hydraulic oil:
Winter:YB-N32/Summer:YB-N46
Capacity of tank:
70L
Crimper range:
8''-14''
Opening without dies:
450mm
Opening:
≥58mm
Supply Ability
Supply Ability:
1000 Set/Sets per Month high pressure hose crimping machine
Packaging & Delivery
Packaging Details
Packed by Wooden Case or as request
Port
Tianjin Port

8"-14'' GM-91K high pressure hydraulic hose crimping machine



Product Description



Machine Head

Front cover, cylinder and piston use Chrome40, forging
integrity, increase their fatigue resistance. Surface hardness is HRC26-30°; hardness of inner working layer is HRC59-63°, Eht2mm.



Dies and Mold Base

Dies and mold base apply advanced magnet connect method, this is patent of our company.



Advantages:

1.Small volume,low weight and easy to be moved.

2.When crimping to the pre-set size,indicator light will be on.

3.Suitablefor outdoor,non-electricity manipulation.

4.Fast speed with compund die base

5.Loading-off handwheel make the die return fast

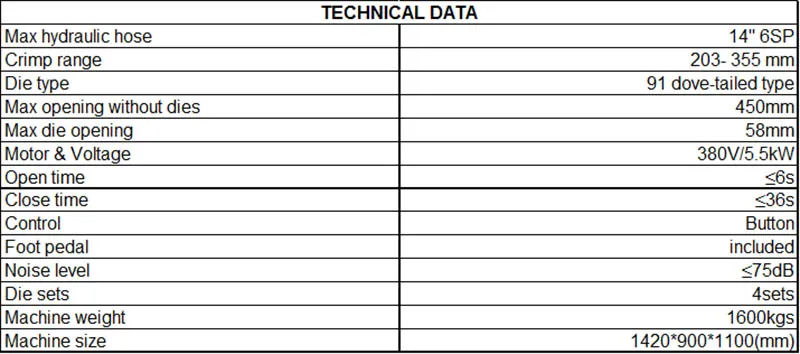

Data Sheet







Our Services

  Instructions for use and maintenance

(I) Operation
1. Store the machine:When you open the package, please put the machine in the ventilation and dry house whose temperature is above 10 ºC.
2.Add the hydraulic oil: The oil port is on the oil box(nylon cover). Open the cover and add the hydraulic oil to the oil box as instruction in technical data.
3. Systematic pressure: The systemic pressure had been adjusted before the machine left out factory.You must not adjust it by yourself in case of damaging the machine.
4. Choose the dies: You should choose proper dies when you make hose assembly. NOTE: The number on the die is the min diameter of crimped.(the regulator is adjusted to zero)
5. Dies installation: The die is installed in the die base. Kindly change the dies like the photo shown:

6. Adjust the crimp size: Adjust the finally crimp size by Numerical Regulator. Turn the Numerical Regulator and the number be changed. At first, choose the suitable dies and then adjust Numerical Regulator.
Note: finally crimp size=die size+Numerical Regulator size.
E.g.: 14+2.5=16.5
